The Bose® F1 Model 812 Flexible Array loudspeaker is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply choose among four different settings. Whether you’re playing at floor level, on a stage, or facing raked seats or stands, you can now adapt your PA to match the room. And once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So, wherever you’re playing, you can have the right coverage for the right room.
Jūs atrodaties šeit

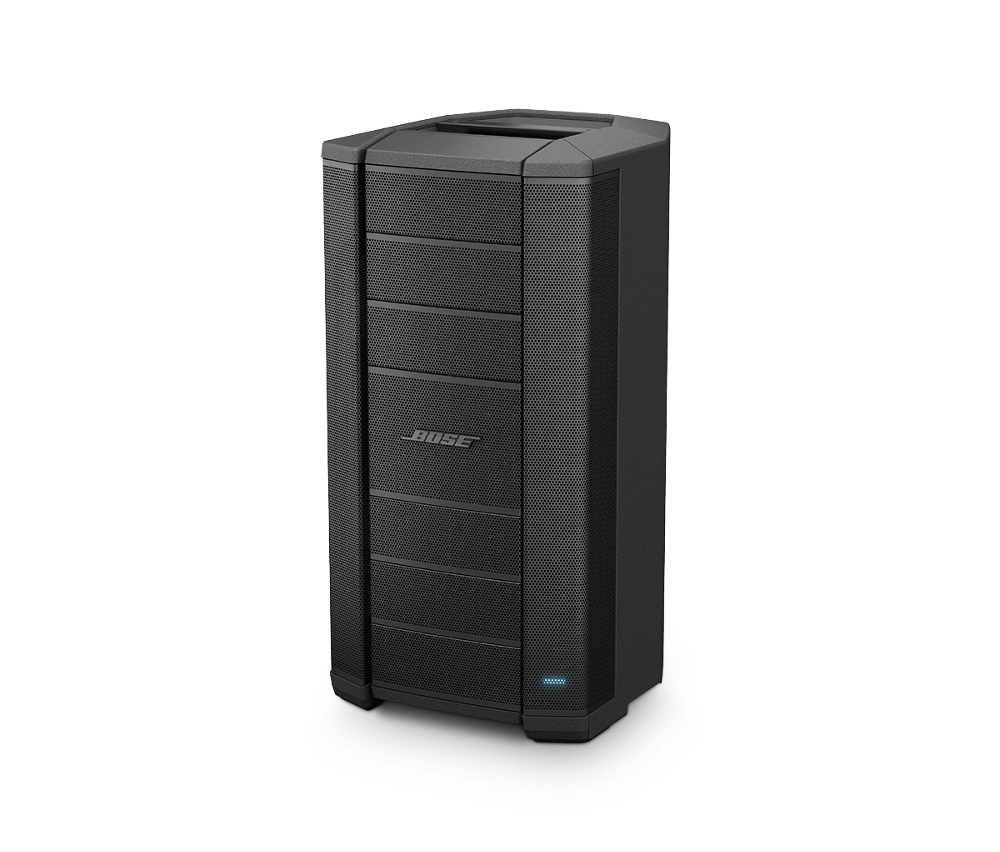

BOSE F1 Model 812
- Exclusive flex array can be configured into four unique shapes (“Straight,” “C,” “J” or “Reverse J”), allowing the customer to choose the best possible coverage pattern for the application
- Eight-driver mid/high line array mounted on a custom 100-degree waveguide helps deliver wide, consistent coverage
- 30 cm high-performance low-frequency driver provides strong low-frequency output

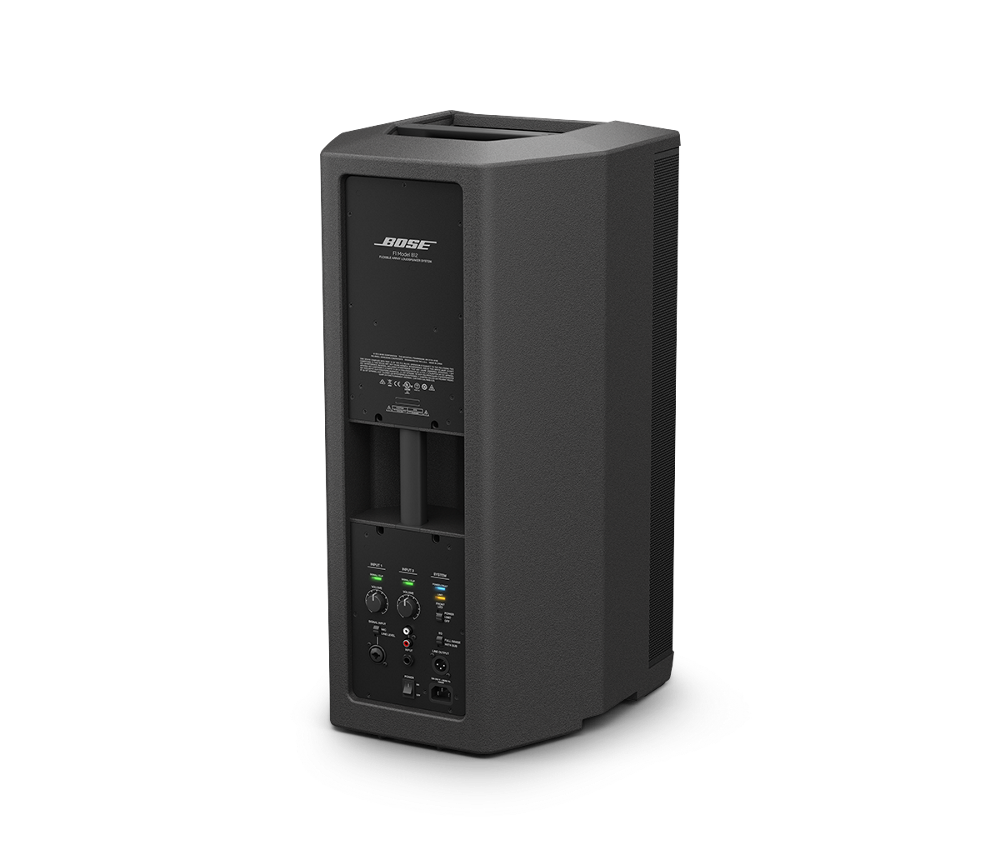

- Bi-amplified design features two high-output, Class-D amplifiers to separately power the flex array and 30.48 cm LF driver

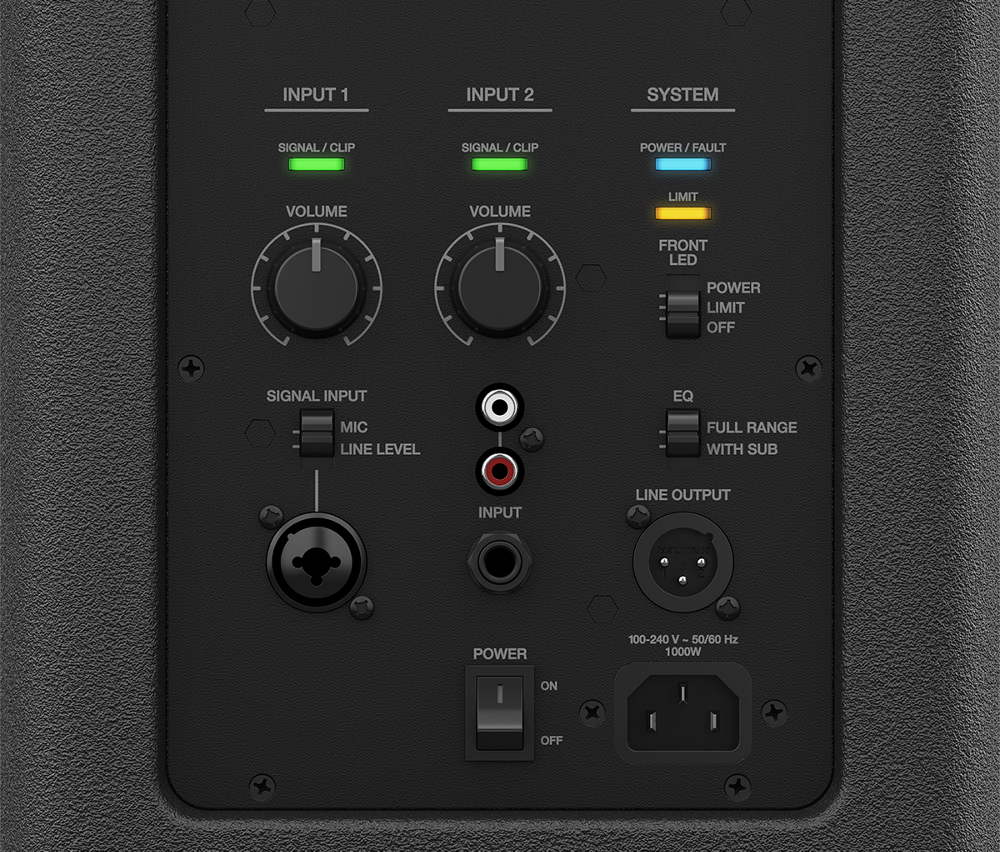

- Two input channels with independent volume controls and Line Level/Mic switch on Channel 1
- Can be paired with the F1 subwoofer for extended bass response
Engineered with a flexible array of eight high-output mid/high drivers, a high-powered 30.48 cm woofer, a lower crossover point and 1,000-watt amplifier, the loudspeaker delivers high SPL performance while maintaining vocal and midrange clarity that’s dramatically better than conventional loudspeakers.
How it works

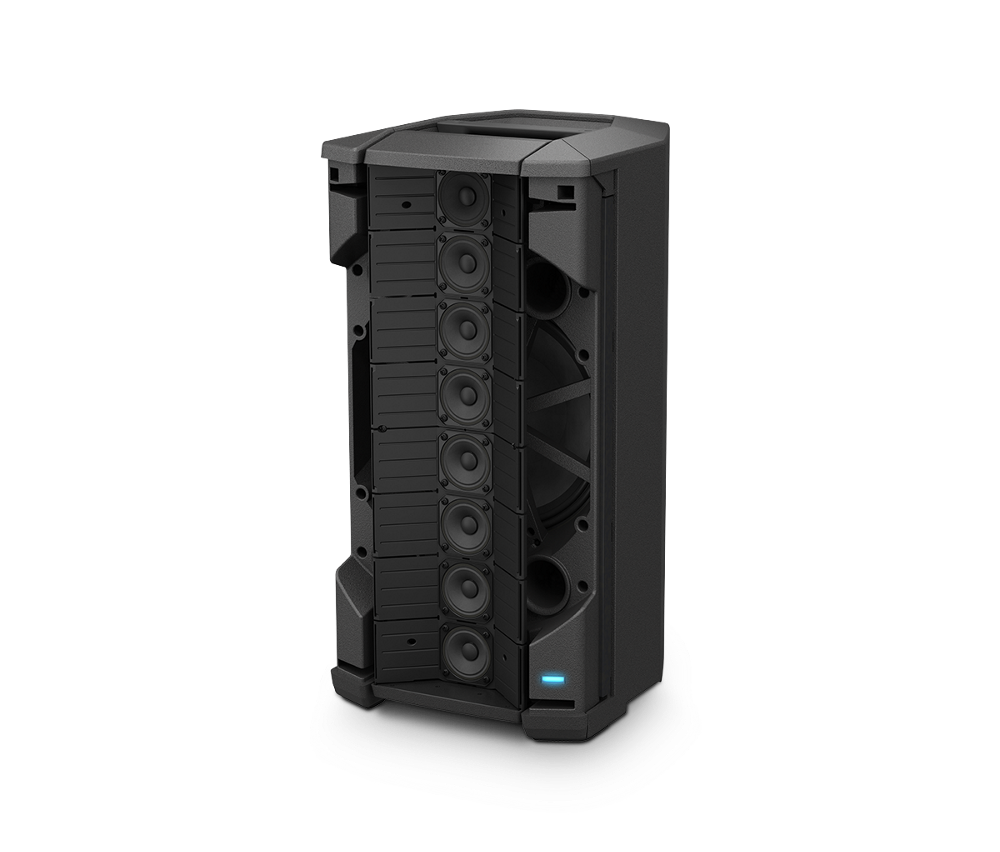

The eight drivers on the F1 Model 812 Flexible Array loudspeaker are mounted on a specially designed flexible baffle. Simply push or pull the array into position to create four vertical coverage patterns: “Straight,” ”J,” “Reverse J” or “C.” Once set, the system automatically changes the EQ to maintain optimum tonal balance for each unique coverage pattern.
For extended bass

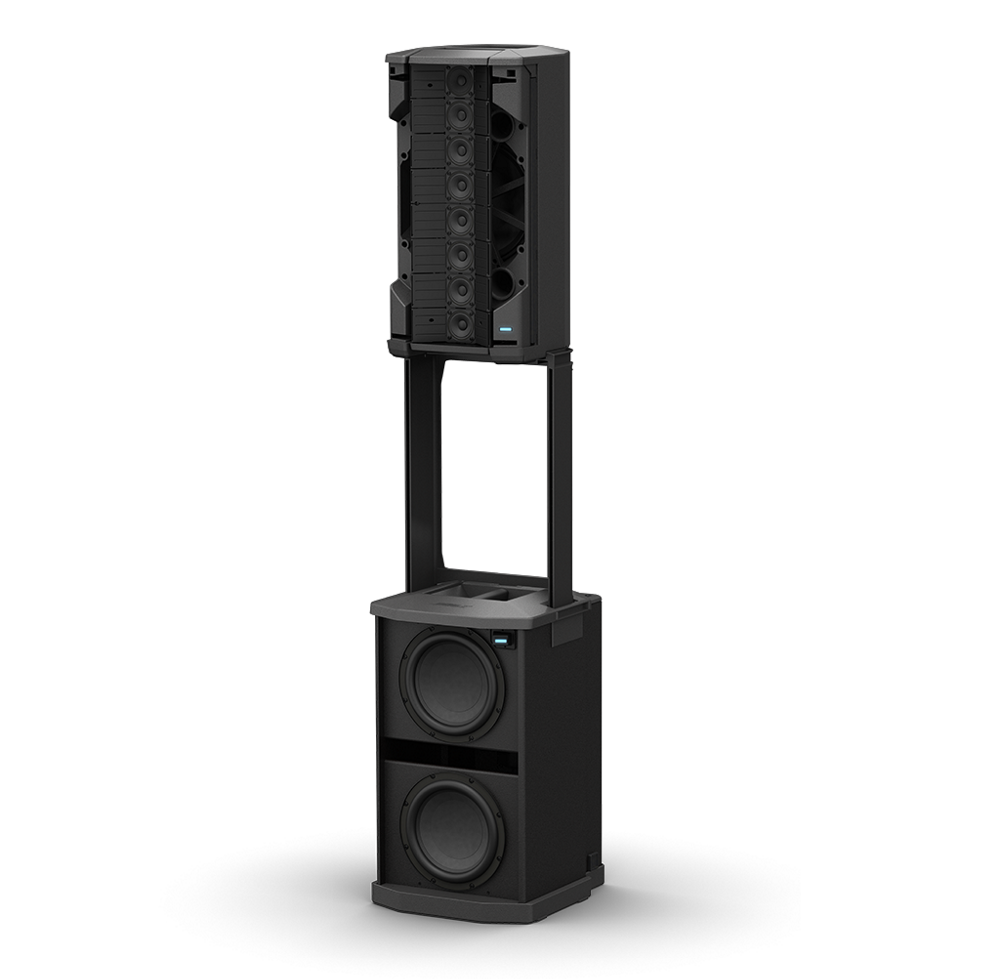

When you need more powerful bass, simply add the Bose F1 Subwoofer. It packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires.
The loudspeaker and subwoofer each have 1,000 watts of power, so you can fill nearly any venue with sound.
And now getting there is easier, too. The loudspeaker and subwoofer feature strategically placed handles for easy transport and highly durable, lightweight composite enclosures to ensure easy transport.

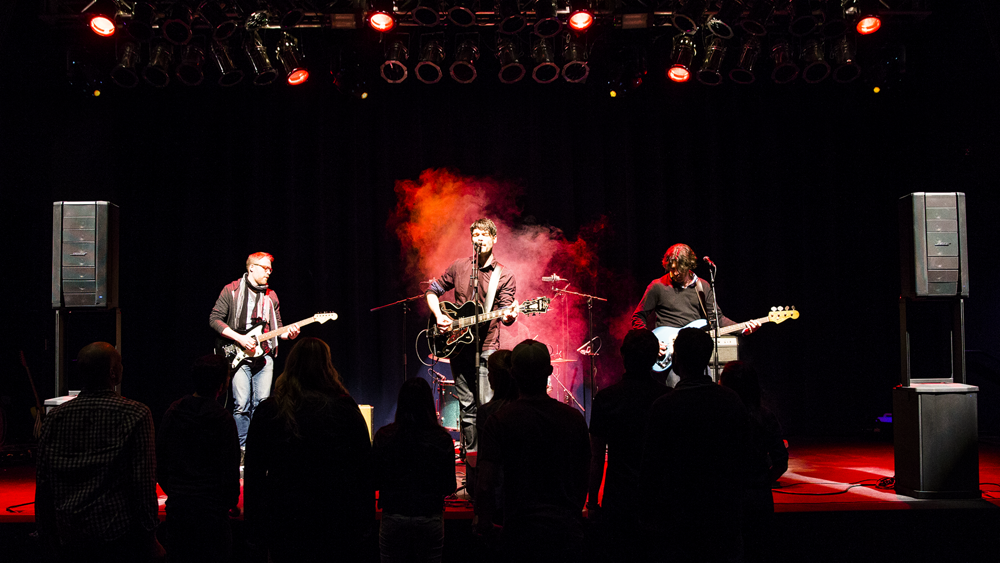

- Live music performances
- Bands of all styles
- Solo musicians
- Mobile DJs
- Houses of worship
- Schools and universities
- Resorts and hospitality venues
- Business presentations
- F1 Model 812 loudspeaker: 664.66 mm H x 334.3 mm W x 372.5 mm D (20.18 kg)
- F1 system stack: 1,868 mm H x 410.16 mm W x 448.5 mm D (46.0 kg)
In the box
- 1 F1 Model 812 loudspeaker
- 1 IEC line cable
- 1 Owner’s guide
- F1 Model 812: High impact composite materials
- Frequency response (-3 dB): 52 Hz - 16 kHz
- Frequency range (-10 dB): 43 Hz - 20 kHz
- Nominal dispersion: C: 100° H x 40° V
- Maximum SPL @ 1 m: 132 dB SPL (peak)
- Rated power: 1,000 W
