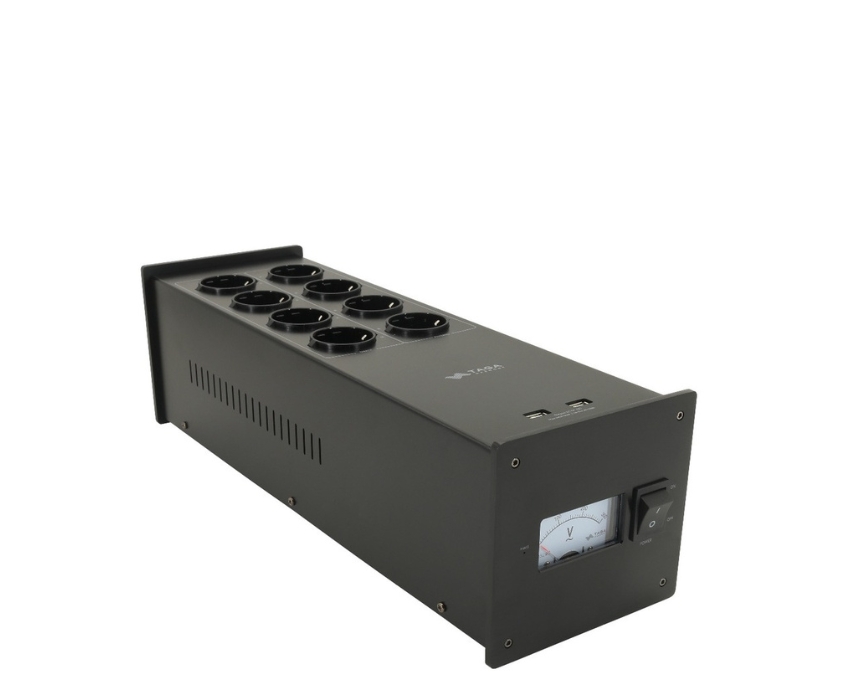

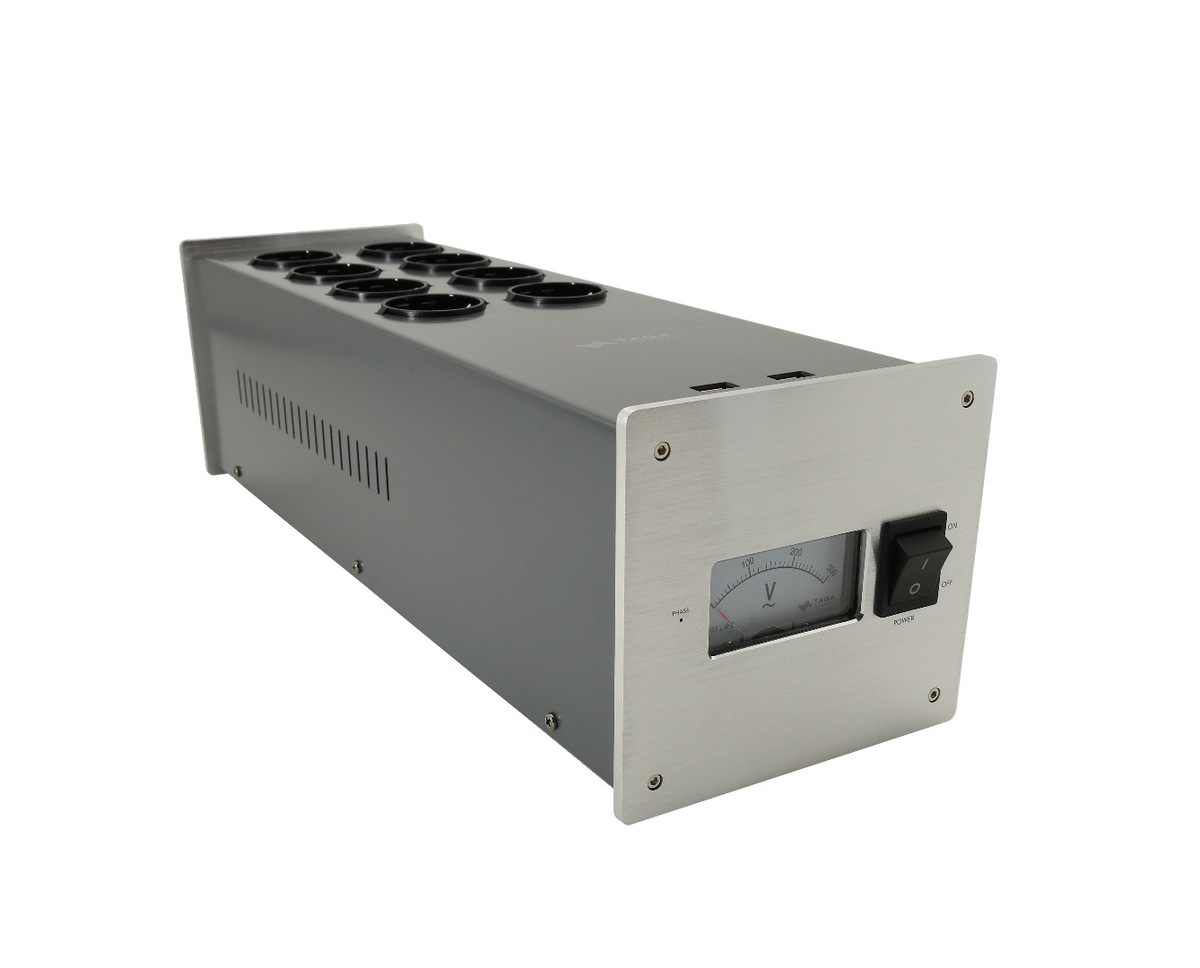

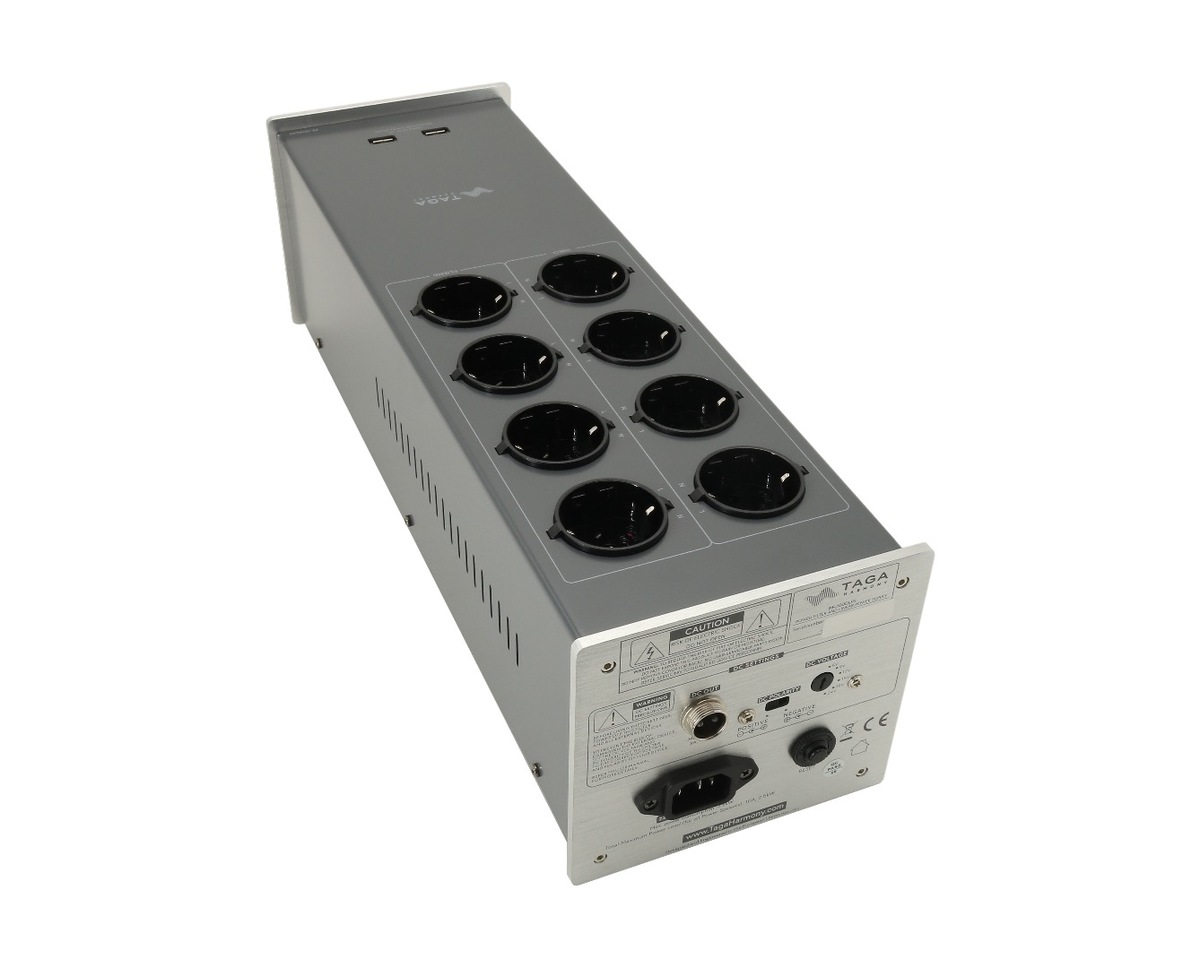

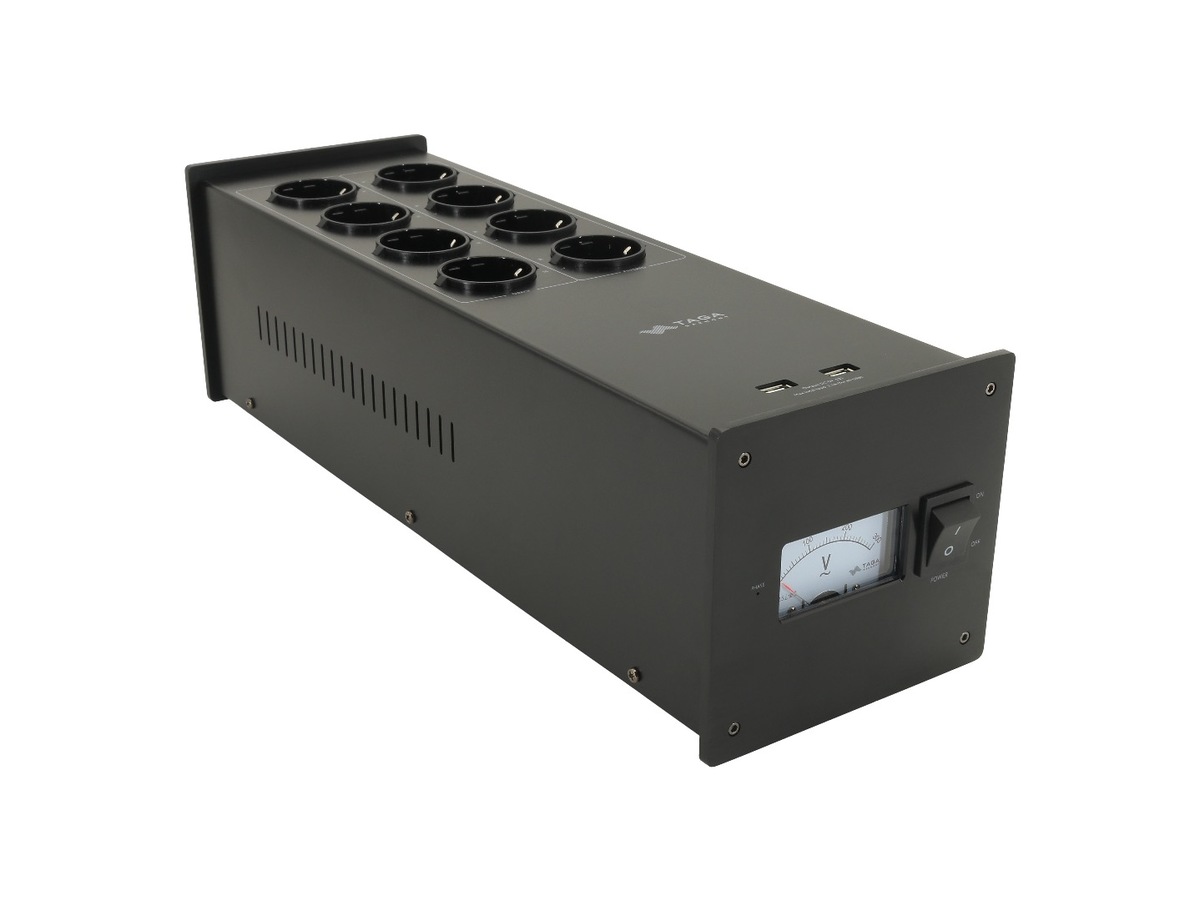

Taga Harmony PF-1000LPS
PF-1000LPS maiņstrāvas filtrs apvieno 4 funkcijas vienā ierīcē: maiņstrāvas trokšņu filtrēšanu; lineāru barošanas avotu ar pārslēdzamu izejas līdzstrāvas spriegumu dažādām ierīcēm; divus USB portus, ko darbina iebūvētais lineārais barošanas avots, lai tos varētu izmantot barošanai un uzlādēšanai; kā arī pārsprieguma un pārslodzes aizsardzību (visām barotajām izejām, ieskaitot līdzstrāvas ligzdu un USB portus).
DesignPower noise filter with linear power supply for DC and USB outputs
Sockets4 direct - Schuko type (230V – 240V)
4 filtered - Schuko type (230V – 240V)

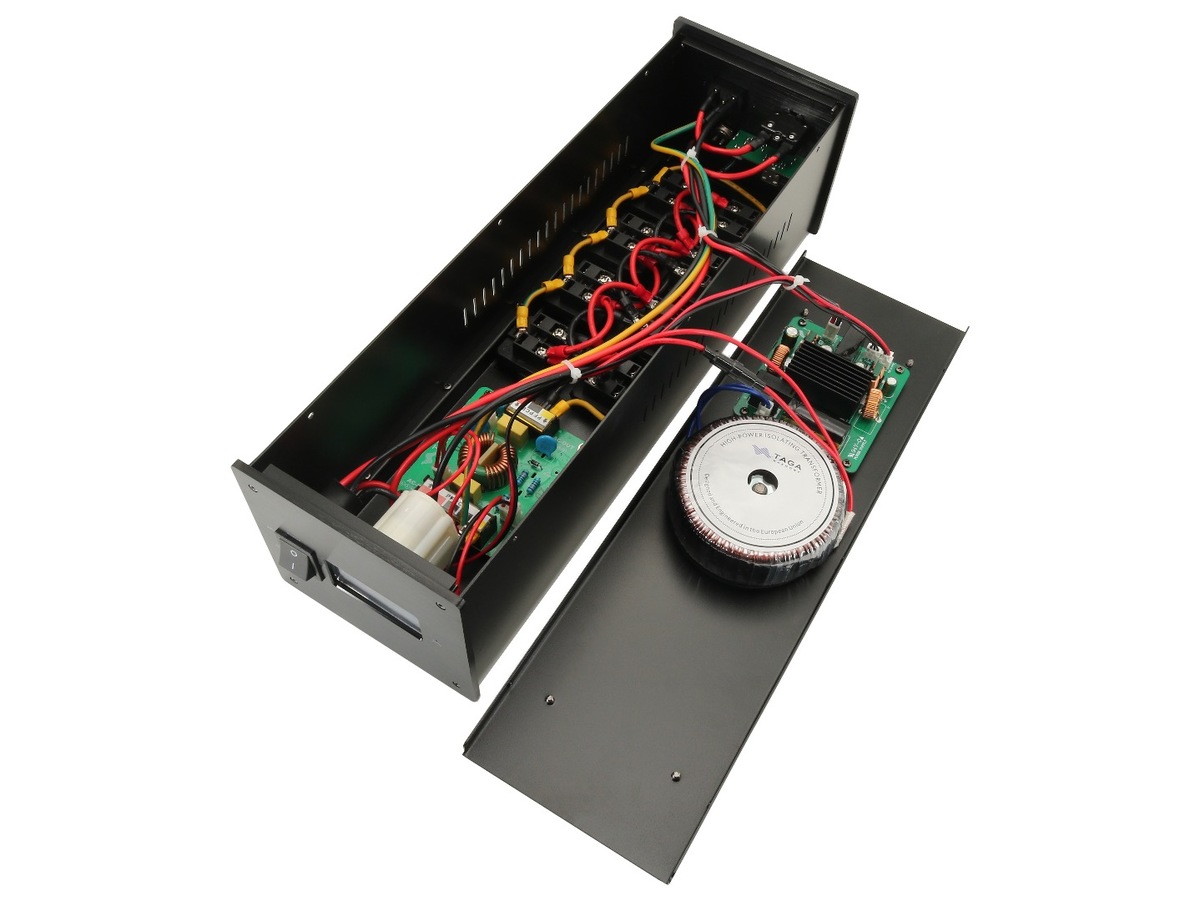

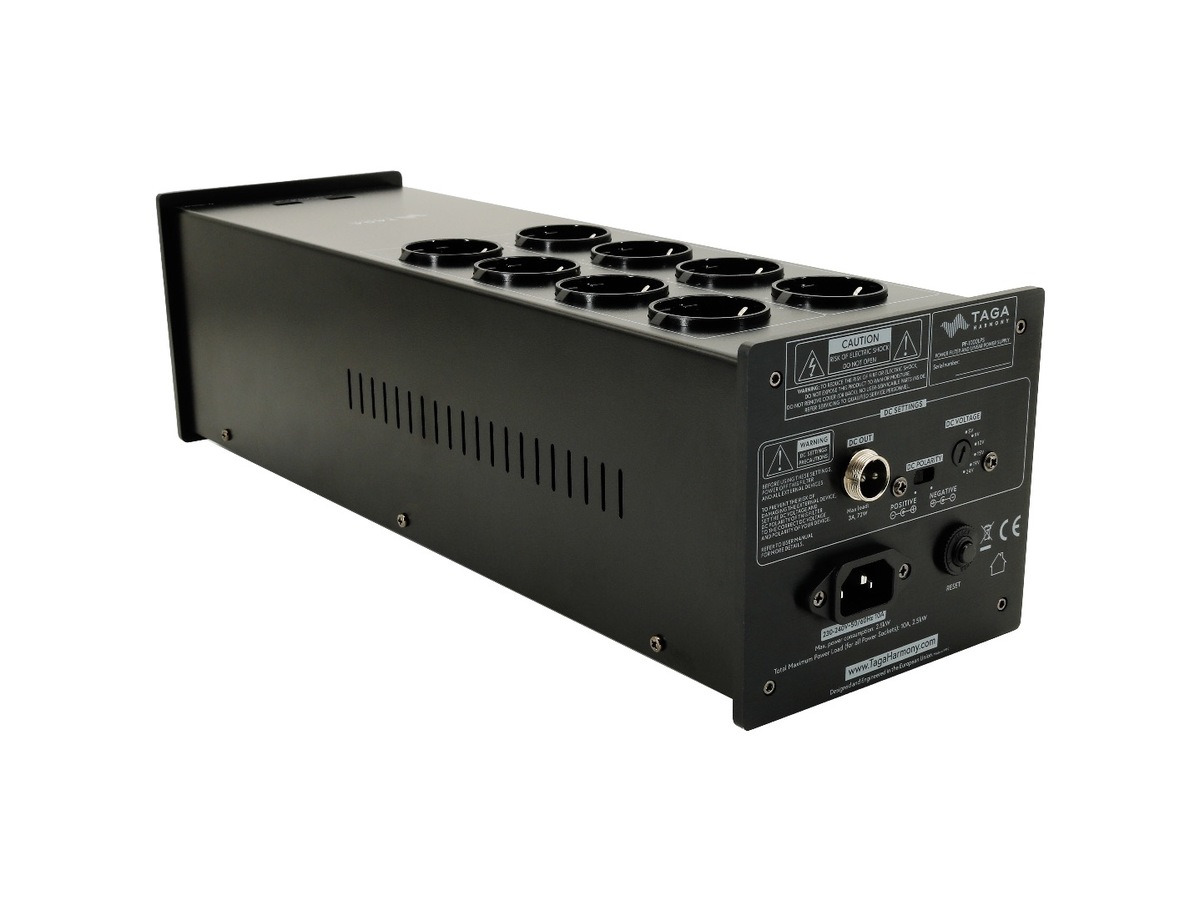

DC output (linear power supply):
- 6 selectable DC output voltages (5V, 9V, 12V, 15V, 19V, 24V)
- Selectable DC output polarity

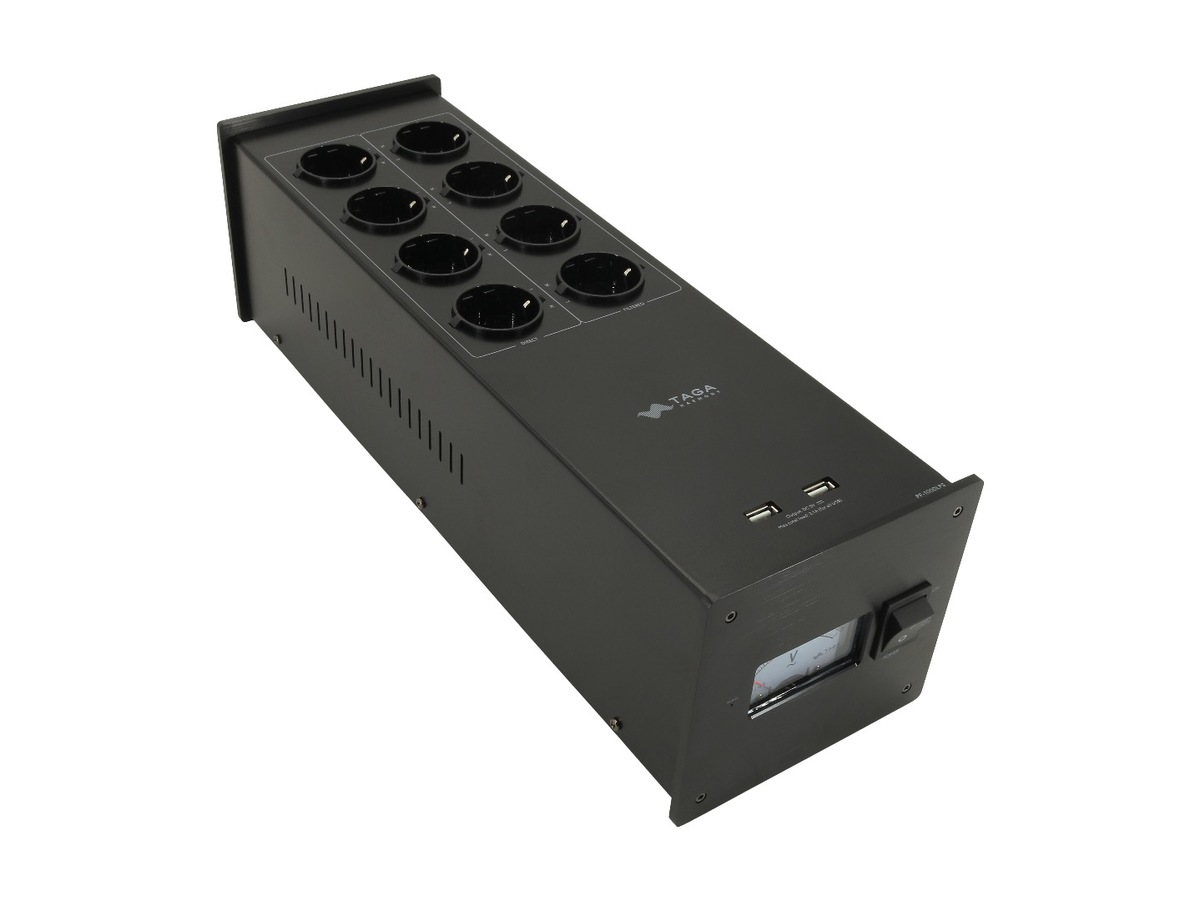

USB-A ports (linear power supply) : x 2 (5V)
Total maximum power load10A, 2500W (total for all power sockets, DC output and USB ports)
DC output 3A, 72W
USB ports 2.1A (total)
Noise filter>-10dB (2 - 100MHz)
Max surge current4500A [8/20µs – one time]
Max spike volt3000V [10ma]
Max clamping volt775V [8/20µs]
Max energy125J [10/1000µs]
80J [2ms]
Features / accessoriesSurge protection
Overload protection
Phase detector

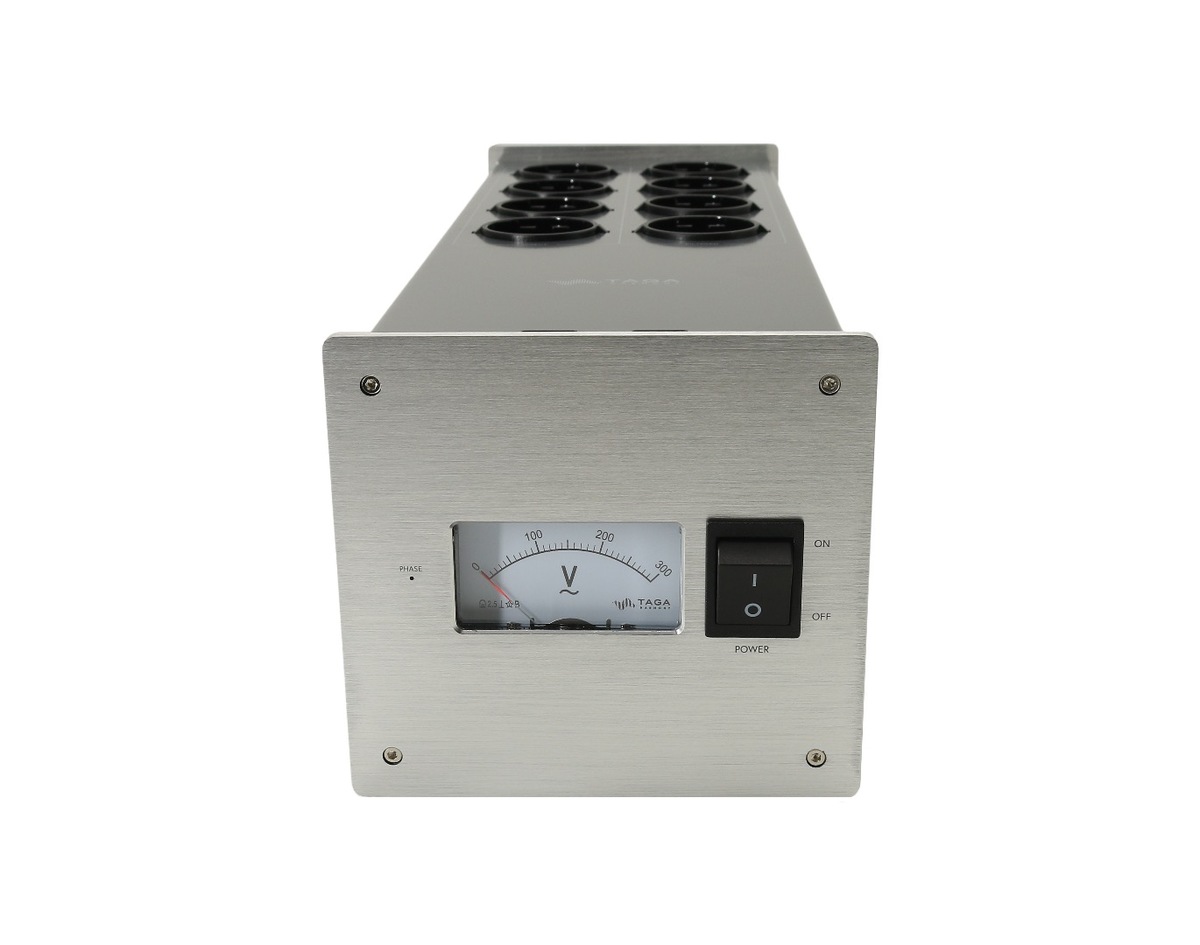

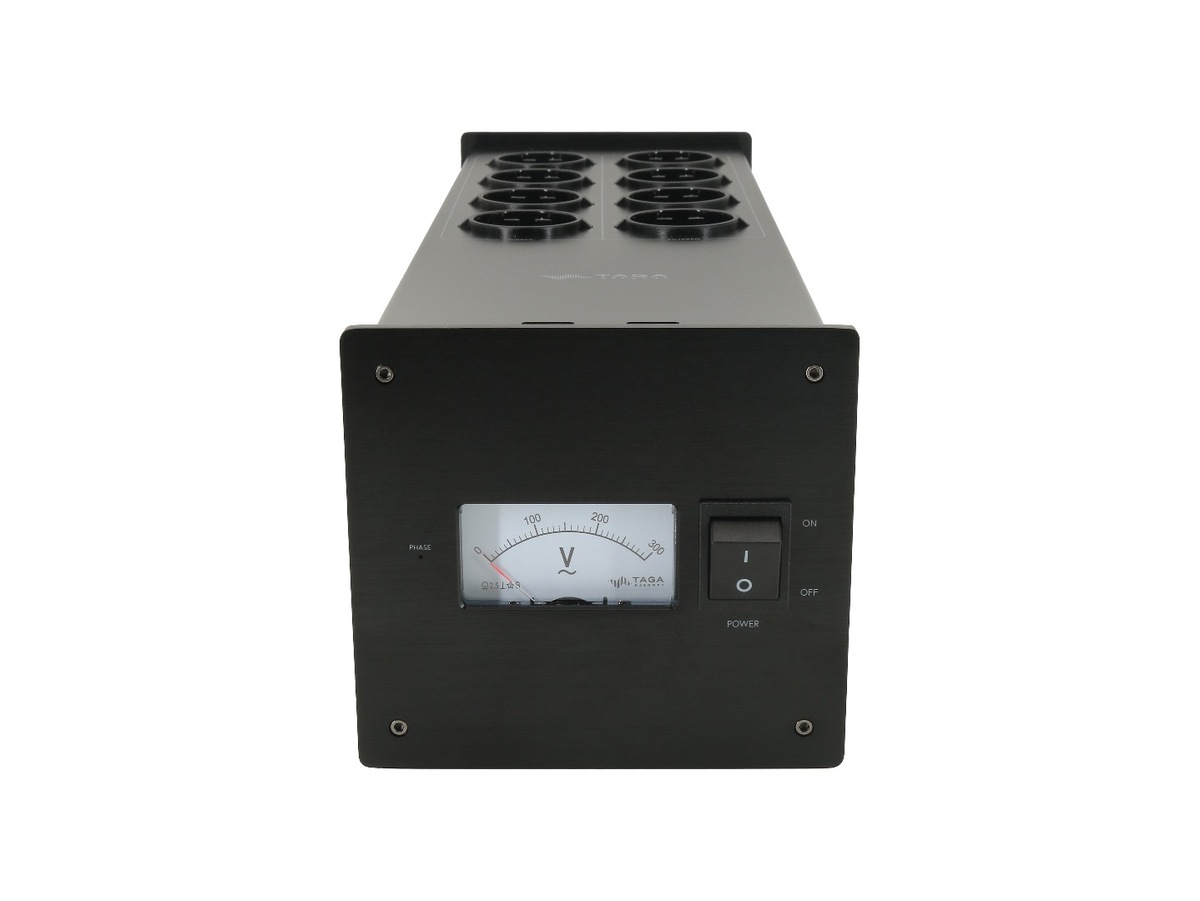

Voltage indicator
USB charging

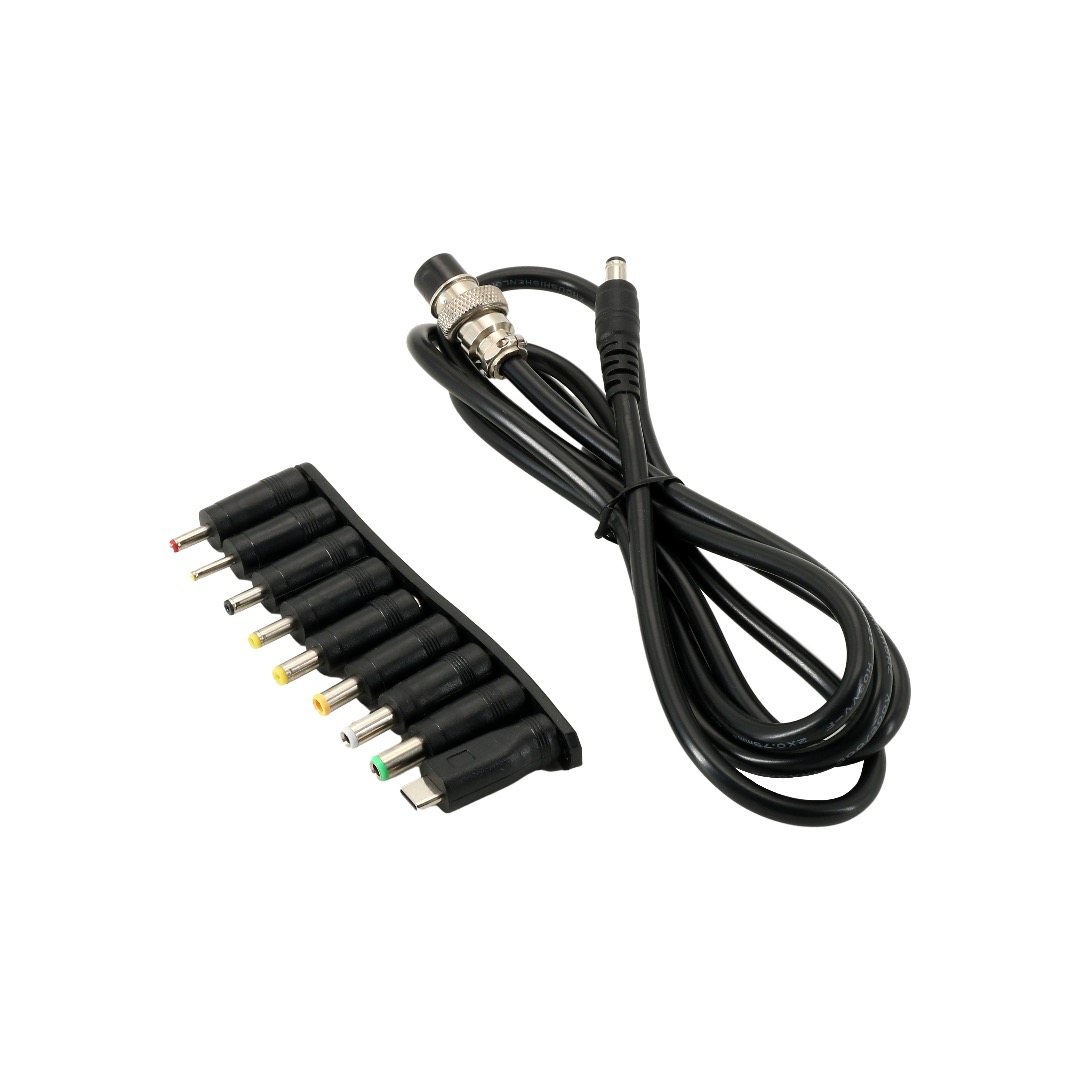

DC-output cable (GX16 2-pin –> DC tip, 1.5 m)
Schuko-IEC C13 power cord (1.5 m)
DC-output cable plugs:
DC tip 5.5 x 2.1 x 11 mm (installed on the DC-output cable)
DC tip 3.5 x 1.35 x 9.5 mm
DC tip 2.5 x 0.7 x 9mm
DC tip 4.0 x 1.7 x 10mm
DC tip 4.0 x 1.35 x 10 mm
DC tip 4.8 x 1.7 x 10 mm
DC tip 5.0 x 3.0 x 10 mm
DC tip 5.5 x 2.5 x 11 mm
DC tip 6.3 x 3.0 x 11 mm
USB C
AC power / power consumption230V~240V 50/60Hz
≤3W (without any external devices plugged in)
Internal fuses for the linear power supply: T2A 250VAC, T5A 250VAC
Dimensions (H x W x D)13 x 14 x 44 cm (incl. feet)
Weight5.75 kg / pc.
