Jūs atrodaties šeit

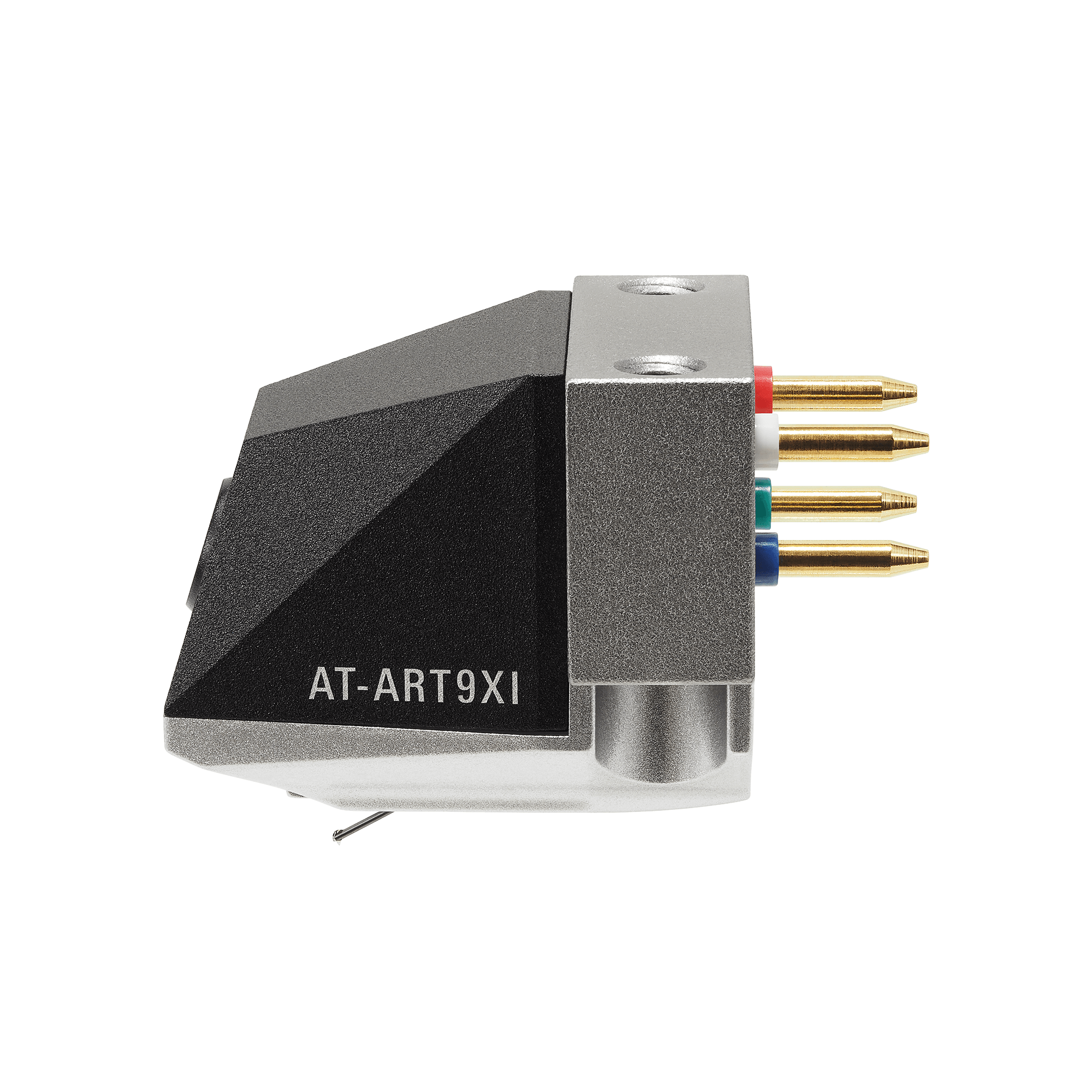

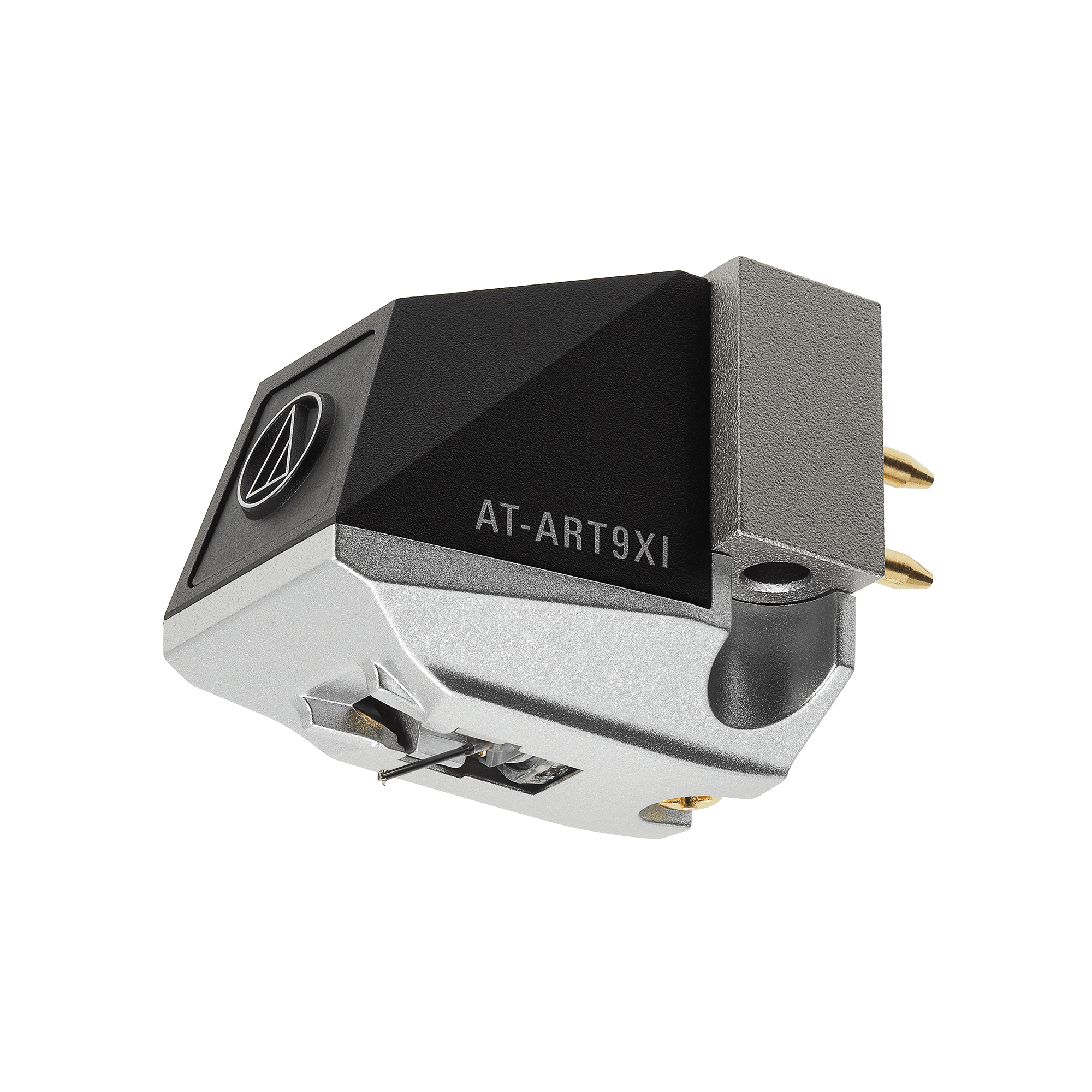

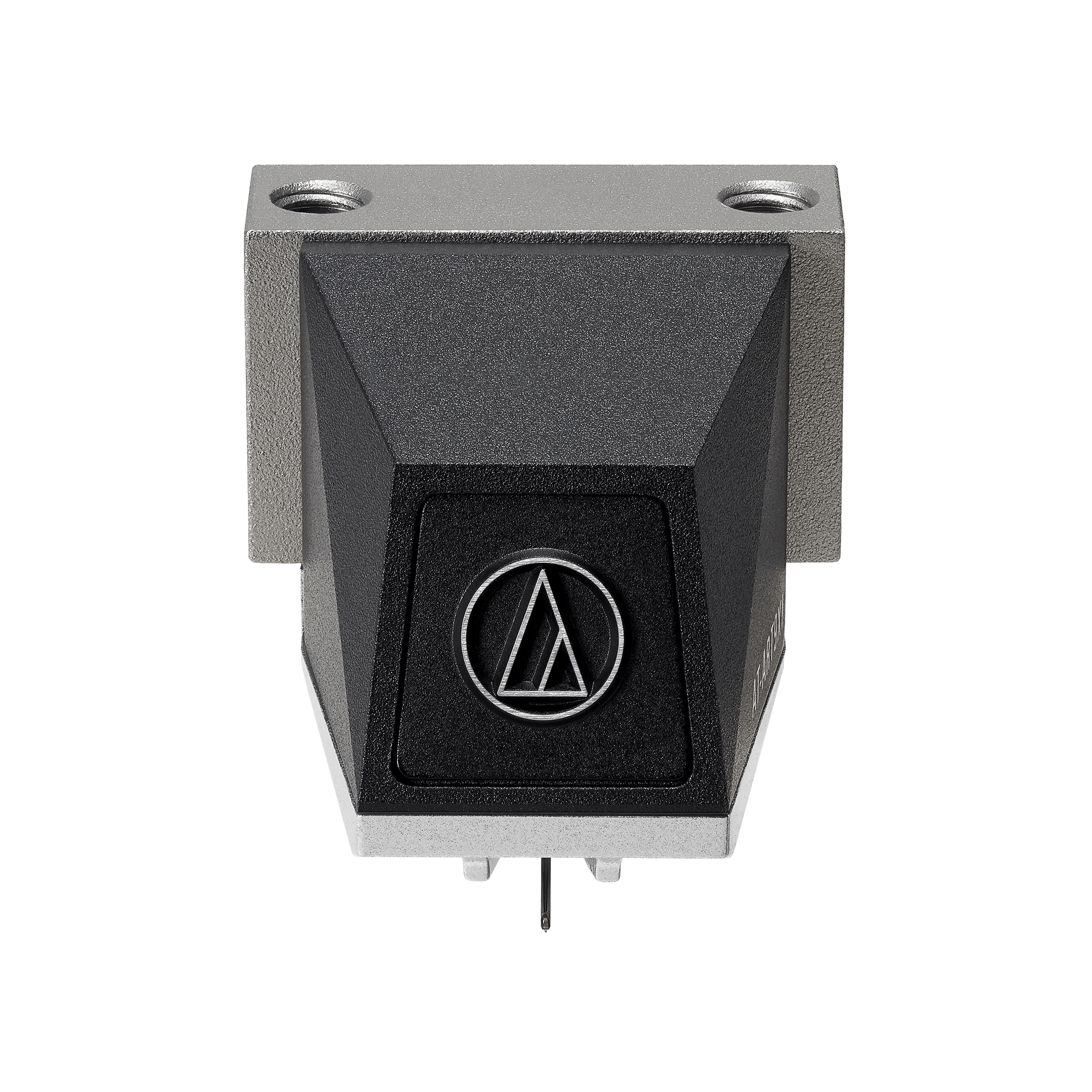

AUDIO-TECHNICA AT-ART9XI

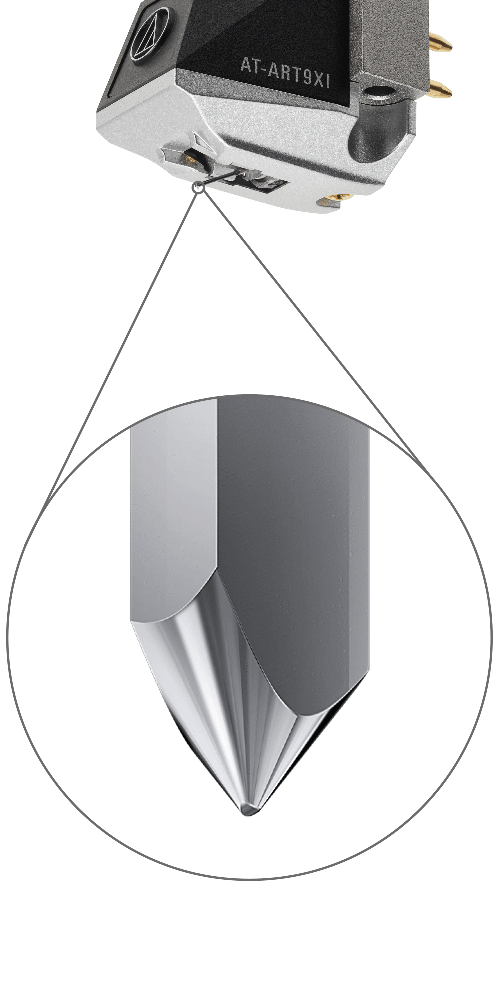

AUDIO-TECHNICA AT-ART9XI ir MC Phono kasetne. Tā aizstāj AT-ART9 un ietver SLC (Special line contact) adatu uz 0,28 mm diametra cietā bora konsoles. “ART” nosaukumā apzīmē Audio-Technica Reference Transducer — apzīmējumu, kas piešķirts tikai zīmola vadošajām fono kasetnēm.
Frequency Response: 20-50,000 Hz
Channel Separation: 30 (dB at 1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
Stylus Construction: Nude
Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 µH (1 kHz)
Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 0.5 dB (1 kHz)
Stylus Shape: Special line contact
Cantilever: 0.28 mm diameter solid boron
Static Compliance: 25 x 10-6 cm/dyne
Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 8.5 g (0.30 oz)
Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
Threaded Hole: M2.6 x 2
Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
