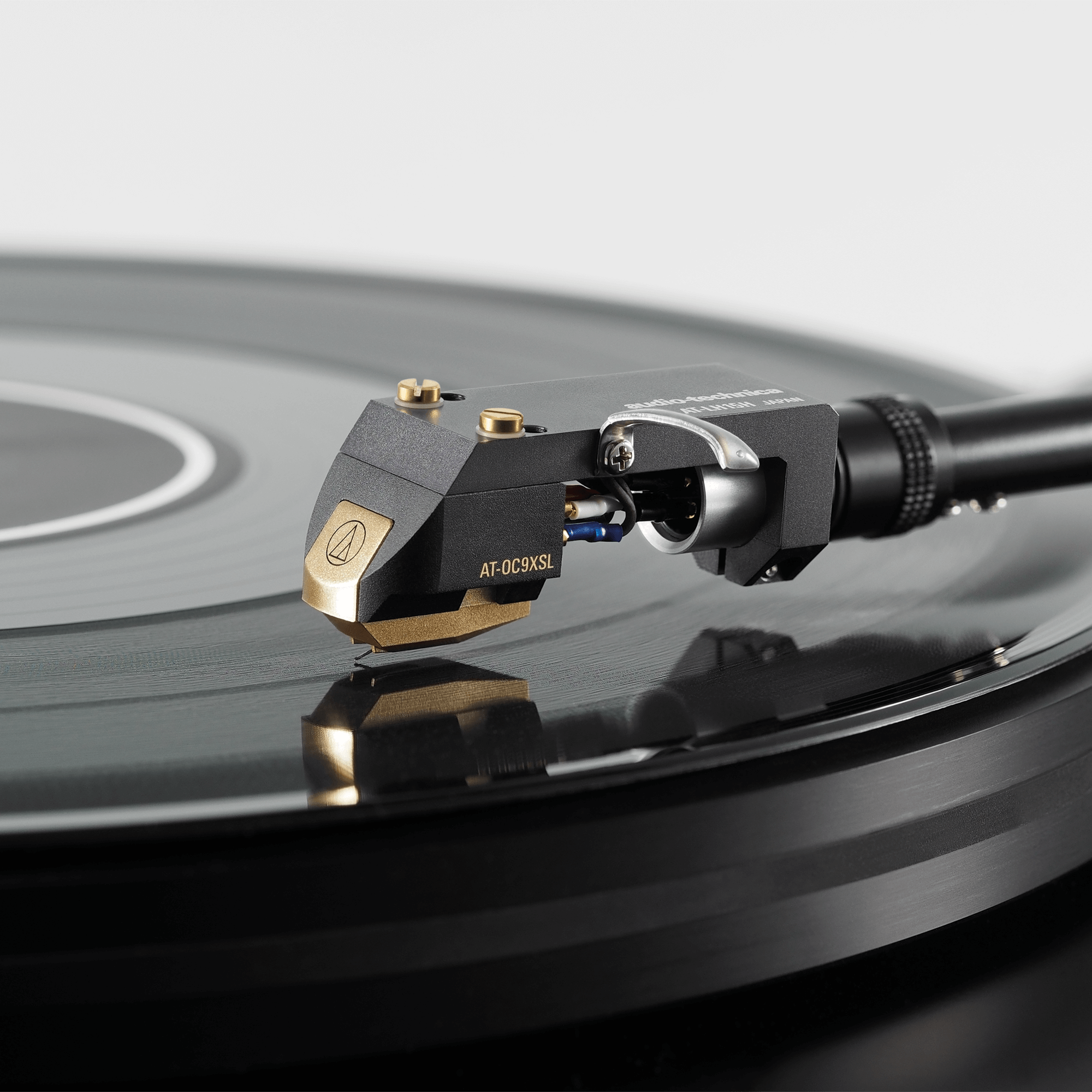

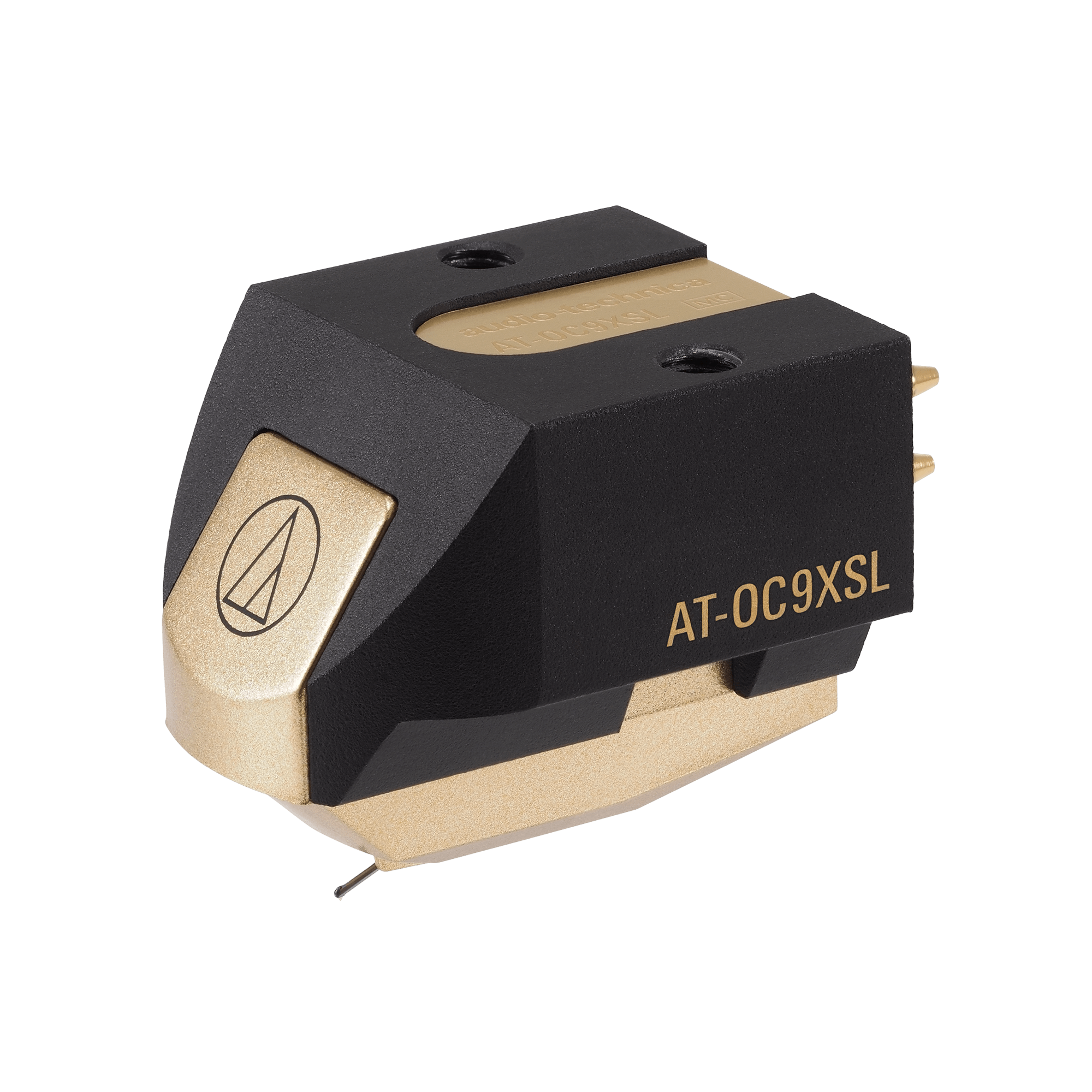

AUDIO-TECHNICA AT-OC9XSL
AT-OC9XSL Dual Moving Coil kasetne ar Special Line Contact adatu. Pure Copper by Ohno Continuous Casting (PCOCC) spoles nodrošina tīru audio pārraidi un ir sakārtotas apgrieztā V formā. Šads izkārtojums mazāk noslogo adatu, tādējādi samazina skaņas kropļojumus. Skaņas kvalitāti vēl vairāk uzlabo stingrs alumīnija korpuss, kas samazina rezonansi, neodīma magnēts un augstākās kvalitātes permendura stiprinājumi, kas ievērojami palielina magnētisko enerģiju, un Special Line Contact adata uz bora konsoles, kas seko ieraksta gropei ar maksimālu precizitāti, nodrošinot bagātīgu, pilna diapazona audio.
Frequency Response: 20 - 50,000 Hz
Channel Separation: 28 dB (1 kHz)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction: Nude rectangular shank
Recommended Load Impedance: Min 100 Ohms
Coil Impedance: 12 Ohms (1 kHz)
DC Resistance: 12 Ohms
Coil Inductance: 25 μH (1 kHz)
Output Voltage: 0.4 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 0.5 dB (1 kHz)

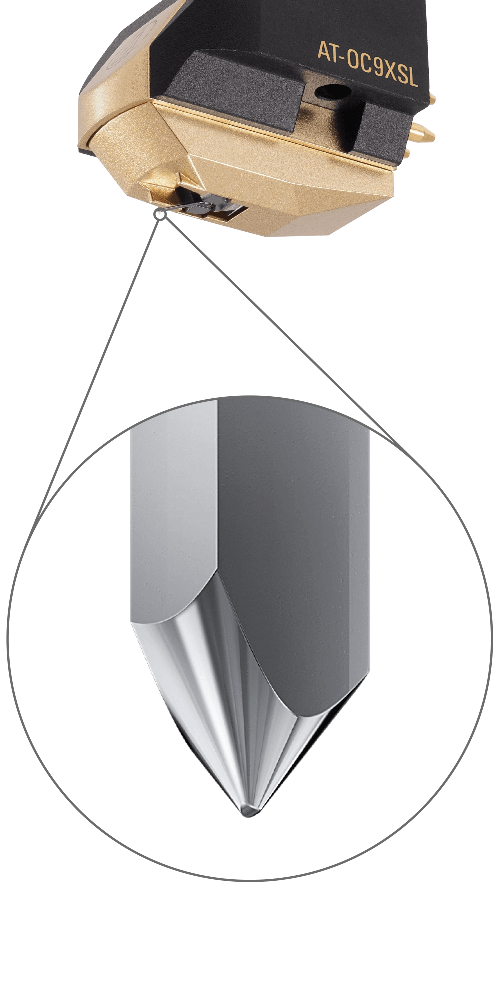

Stylus Shape: Special Line Contact
Cantilever: 0.28 mm Ø nude boron
Static Compliance: 22 x 10 – 6 cm / dyne
Dynamic Compliance: 18 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centers / Threaded inserts
Cartridge Weight: 7.6 g
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

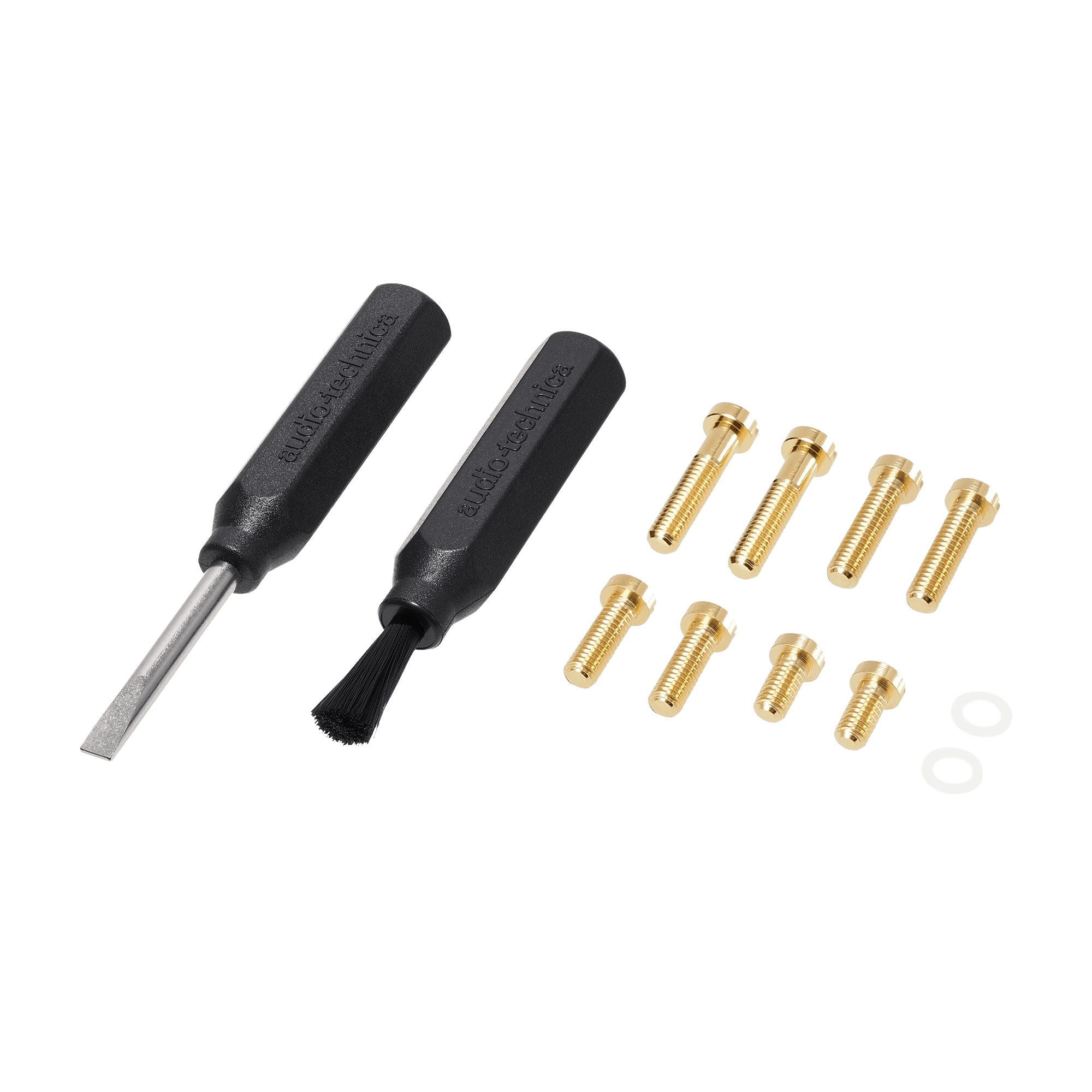

Accessories Included:
1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material: Aluminium
Model: AT-OC9XSL
Stylus Size: 1.5 x 0.28 mil
Terminal Pins: Brass
Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process.)
